When I bought my first BVision, I could not find anywhere
a pinout for the missing SVGA connector. I had to buy a
second BVision as a result. Before I sold both later on,
I buzzed out the pins, so that others in the same
predicament could resolve this.

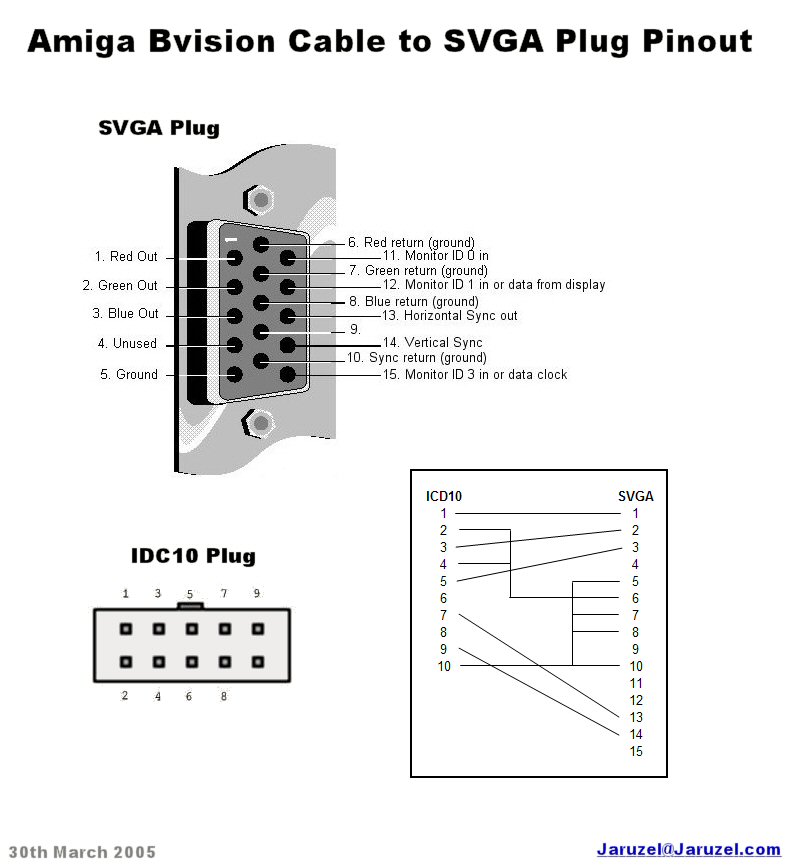

This is a wiring diagram for replacing a missing SVGA plug
on a BVision Graphics card.
|
|
|
|
